Equipment

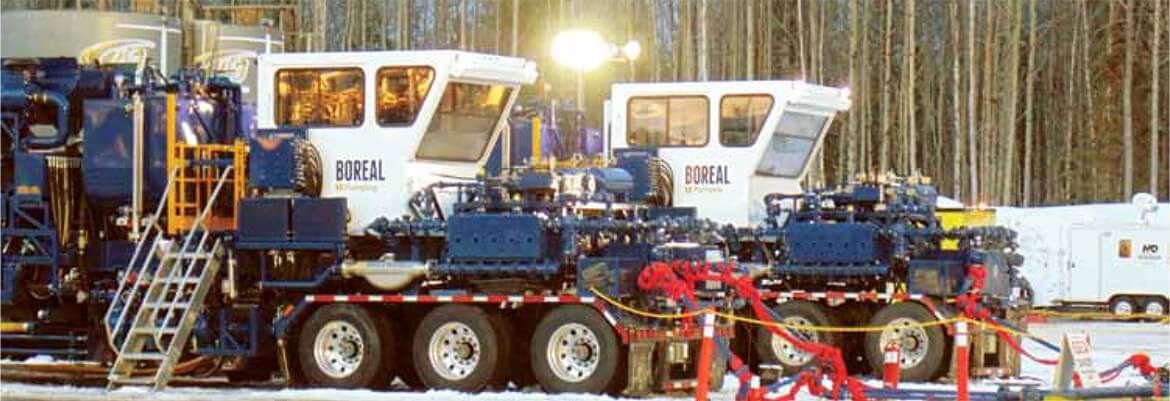

Pump Down Spreads with Backside Monitoring

Boreal Pumping Trucks

What sets us apart? We have the largest range of fluid pumping rates in the province. We also offer single- or multi-well backside support with live/remote monitoring, so there is no need for a pressure truck or vacuum truck.

Our pump down spread units are the only high pressure/high volume units with simultaneous backside support on the market, providing the horsepower of a frac pump (2500 HHP) and the precision of a low-volume pressure truck with our LVHP jet pump.

Pump Down Spread Specifications:

  • Rates redundant up to 1.5m3/min at 70 mPa
  • As low as 0.25l/min at 103 mPa
  • Complete sling restraint systems
  • 2” and 3” 1502 Integral 15,000 Psi iron
  • On-the-fly chemical systems with heated trailer
  • Live link data watching capability (Cell service Required)

What Sets Us Apart

  • We have the largest range of fluid pumping rates in the province
  • Single or multi-well backside support with live/remote monitoring so there is no need for a pressure truck
  • No vacuum truck required
  • Fully integrated chemical system

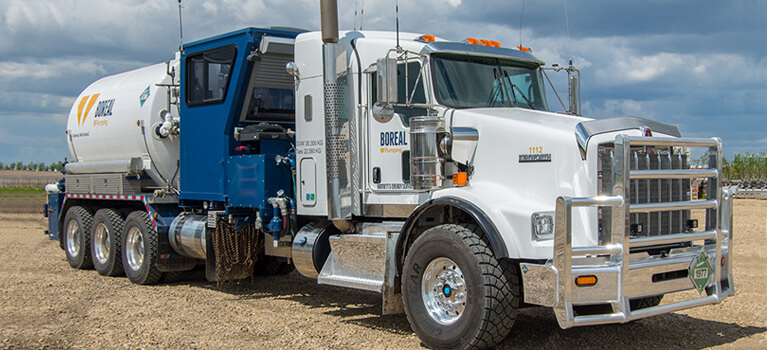

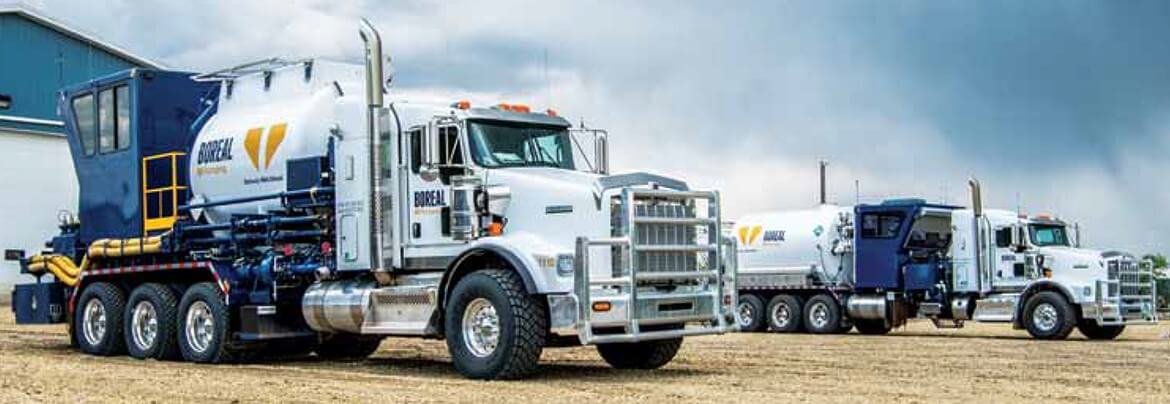

Acid Pumpers

Boreal Pumping Trucks

Our fleet is outfitted with four state-of-the-art acid fluid trucks, enabling us to complete acid squeezes, selective acid jobs, nitrified acid jobs, acid matrix, ball launching, backside monitoring and pressure testing.

Acid Pumping Truck Specifications:

  • Equipped with an 8m3 steel tank (5m3 + 3m3 compartment)
  • Capable of pumping 0.15 -1100 liters per minute at up to 15,000 Psi
  • Capable of legally hauling up to 1 m3 of acid
  • Control cabin allows for monitoring of engine diagnostics, fluid rates and pressures by providing PDF and CSV reporting to our clients
  • Equipped with a low-volume-high-pressure jet pump, capable of producing rates as low as 0.15l/min at 15,000 Psi

N2 Pumpers

N2 Pumper Operator Compartment

Field-proven design with leading edge technologic integrations makes Boreal’s N2 pumpers industry leaders.

Flow rates from 10-70 scm per minute at pressures up to 69 mpa.

Features:

600 Total Horsepower Output

  • (1) Cummins ISX 600 power supply rated 600 bhp

250 Total hydraulic horsepower output

  • (1) Nov NP-200 10k (69 mpa) triplex pump rated at 250 hhp with 250 bhp input

600 Total Horsepower Output

  • Instantaneous value recording and graphing
  • Real-time data streaming — remote well monitoring
  • Full redundancy to eliminate data failures
  • Flameless glycol heat recovery system
  • 7500 scm cryogenic spec tank

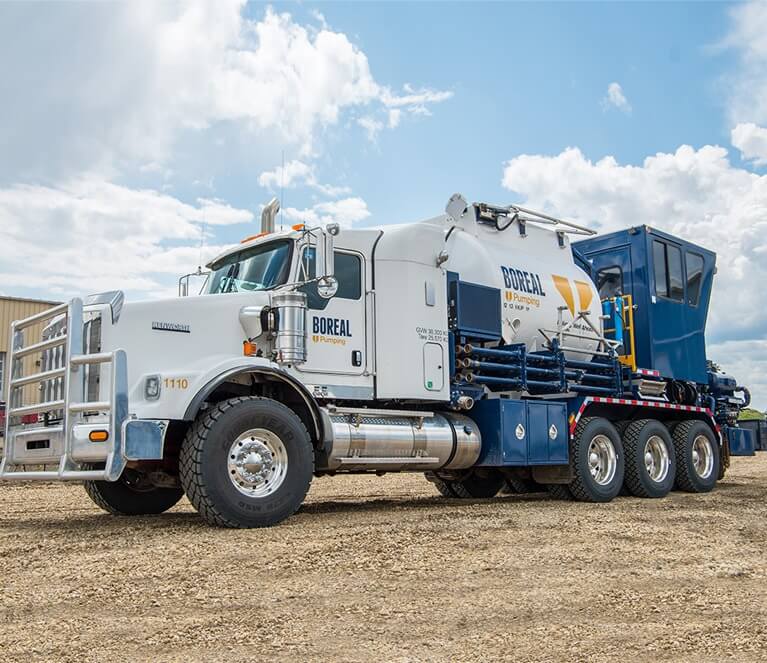

Fluid Pumpers

Boreal Pumping Equipment

A tried and tested platform with the latest technological advances making Boreal’s single pumpers the industry leaders.

Flow rates from 1-1200 liters per minute at pressures up to 103 mpa. 1200 lpm @ 13 mpa — 220 lpm @ 103 mpa.

Features:

600 Total Horsepower Output

  • (1) Cummins ISX 600 power supply rated 600 bhp

600 Total Hydraulic Horsepower Output from 2 Pumps

  • (1) Gardner Denver 10 & 15k (103 mpa) pump 50 hhp
  • (1) SPM TWS 600 10 & 15k (103 mpa) triplex pump rated at 600 hhp with 550 bhp input

Fully Integrated Data Acquisition System

  • Instantaneous value recording and graphing
  • Coriolis style flow meters accurate down to 5 ml
  • Real-time data streaming – remote well monitoring
  • Full redundancy to eliminate data failures

Fully Redundant Suction Piping

  • Eliminates down time due to failures
  • Designed with gear pump inline to allow for easy fluid
  • Transfer and removal of treating iron under vacuum
  • Eliminates third party charges
  • Dot compliant chemical delivery

On Board, Traceable Chemical Injection System

  • Instantaneous value recording and graphing
  • Coriolis style flow meters accurate down to 5 ml
  • Real-time data streaming – remote well monitoring
  • Full redundancy to eliminate data failures

8M3 Dual Compartment Spec Tank

  • Dot compliant chemical delivery

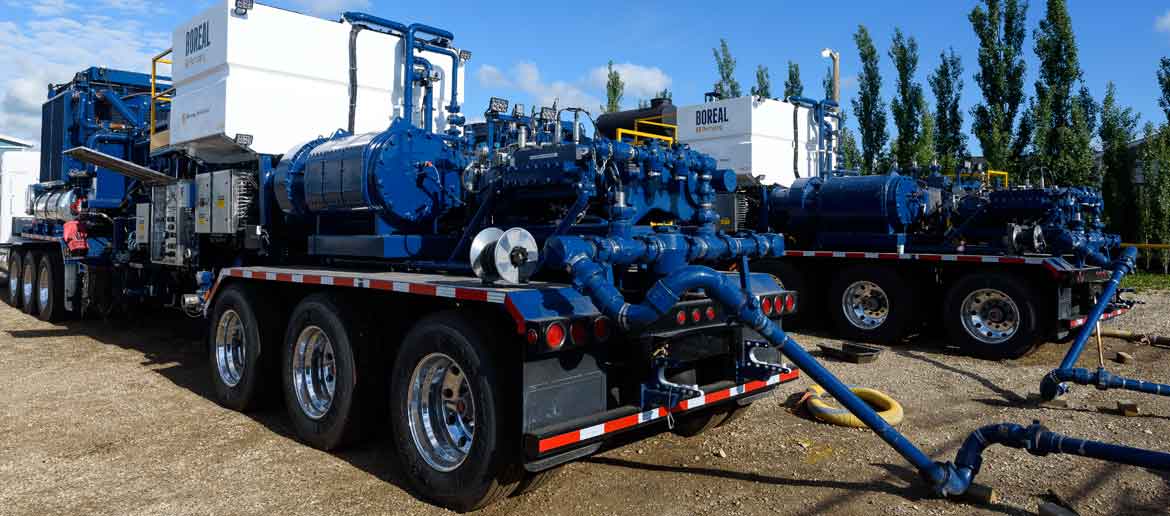

Twin Fluid Pumpers

Boreal Twin Fluid Pumpers

These state of the art units set the new standard in North America, offering the highest safety and performance on the market.

Flow rates from 1-3000 liters per minute at pressures up to 103 mpa. 3000 lpm @ 14 mpa — 770 lpm @ 103 mpa.

Features:

2100 Total Horsepower Output from Three Engines

  • (1) Cat C9 auxiliary power supply rated 400 bhp
  • (2) Cat C18 direct drive prime movers rated 1700 bhp

1800 Total Hydraulic Horsepower Output from 3 Pumps

  • (1) Gardner Denver 15k (103 mpa) jet pump 100 hhp
  • (2) SPM QWS 1000 15k (103 mpa) quintuplex pumps rated at 1000 hhp each with 850 bhp input totaling 1700 hhp

Fully Integrated Data Acquisition System

  • Instantaneous value recording and graphing
  • Coriolis style flow meters accurate down to 5 ml
  • Real-time data streaming — remote well monitoring
  • Full redundancy to eliminate data failures

On Board, Traceable Chemical Injection System

  • Coriolis metered, operator controlled
  • Allows for accurate placement of treatment chemicals
  • Heated support unit contains full array of gels, friction, reducers & methanol
  • Suction piping injection & batch mixing capabilities

Fully Redundant Suction Piping

  • Fully redundant suction piping
  • Eliminates down time due to failures
  • Designed with gear pump inline to allow for easy fluid transfer and removal of treating iron under vacuum
  • Eliminates third party charges
